₨27,000.00

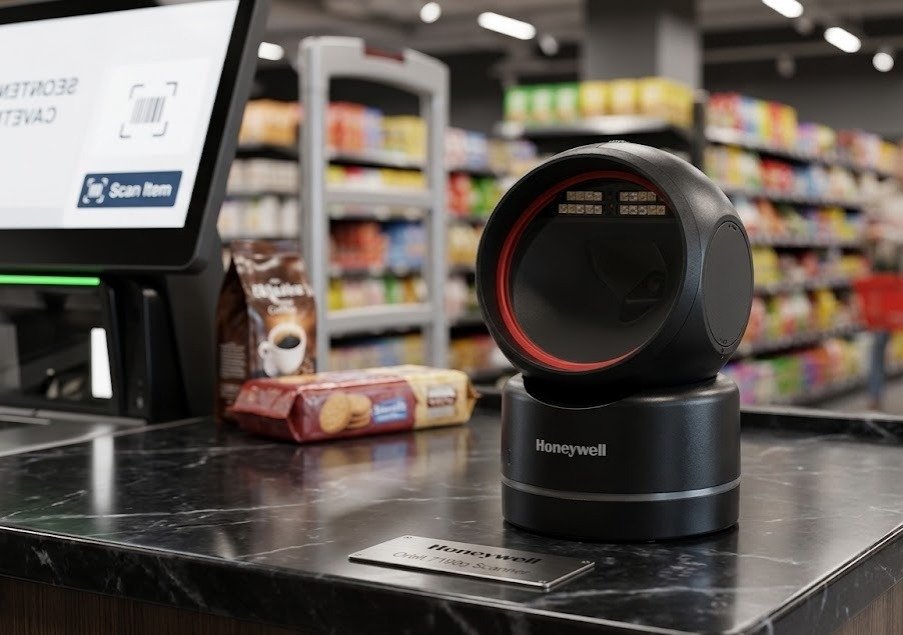

The Honeywell Orbit HF680 is a corded, hands-free desktop barcode scanner designed for retail checkout, pharmacies, customer-service counters and other point-of-sale workstations.
It uses a 1-megapixel area-imaging sensor and a 1GHz processor to read standard 1D, PDF and 2D barcodes, including QR codes. It can also scan compatible digital-screen codes and some damaged or poorly printed barcodes.
The Honeywell HF680 combines hands-free scanning, modern styling and 2D barcode support in a compact desktop device.
Customers or employees can present products, printed labels and smartphone barcodes directly in front of the scanner. This reduces the need to pick up and trigger a handheld scanner for every transaction.
Its 1-megapixel sensor, 1GHz processor and motion tolerance of up to 2.5 metres per second help it process fast-moving retail barcodes, including digital and damaged symbols.
The scanner also uses recessed illumination that activates when an object is presented and switches off when the scanner is not being used. This makes the lighting less distracting at customer-facing counters.
Buy the Honeywell HF680 from GS Systemz for retail, pharmacy and point-of-sale barcode-scanning requirements in Pakistan.
The Honeywell Orbit HF680 provides the following major features:
Honeywell states that the exact barcode-decoding capability and supplied accessories depend on the selected kit configuration.
The Honeywell HF680 is suitable for fixed indoor workstations that need hands-free scanning of printed and digital barcodes.
| Application | Suitability |
|---|---|
| Retail product scanning | Excellent |
| Supermarket checkout | Excellent |
| QR-code scanning | Excellent |
| Mobile-payment codes | Excellent |
| Digital loyalty cards | Excellent |
| Mobile coupons | Excellent |
| Pharmacy billing | Excellent |
| Customer membership codes | Excellent |
| Ticket verification | Good |
| Hotel registration | Good |
| Customer-service counters | Good |
| Fixed inventory workstations | Good |
| Product verification | Good |
| Large-product scanning | Good |
| Wireless warehouse scanning | Not supported |
| Long-range shelf scanning | Not designed for this |
| Outdoor use in rain | Not suitable |
Honeywell primarily positions the HF680 as a point-of-sale presentation scanner for retailers requiring affordable 1D and 2D barcode performance.
Here are the main official Honeywell Orbit HF680 specifications:
| Specification | Detail |
|---|---|
| Product name | Honeywell Orbit HF680 |
| Product type | Hands-free presentation barcode scanner |
| Connection type | Corded |
| Scanning technology | 2D area imaging |
| Sensor resolution | 1280 × 800 pixels |
| Processor | 1GHz |
| Decode capability | Standard 1D, PDF and 2D barcodes |
| QR-code support | Supported |
| Motion tolerance | Up to 2.5m/s for 13 mil UPC |
| Horizontal scan angle | 47° |
| Vertical scan angle | 30° |
| Pitch tolerance | ±60° |
| Skew tolerance | ±70° |
| Minimum print contrast | 20% |
| Minimum 1D resolution | 3 mil |
| Minimum 2D resolution | 6.7 mil |
| Host interfaces | USB and RS-232 |
| Input voltage | 5V DC ±0.5V |
| Operating power | 2W or 400mA at 5V |
| Standby power | 0.85W or 170mA at 5V |
| Dimensions | 85 × 88 × 139mm |
| Weight | Approximately 278g, ±10g |
| Drop resistance | Designed for 1m drops |
| Environmental protection | IP42 |
| Operating temperature | -10°C to 40°C |
| Storage temperature | -40°C to 60°C |
| Operating humidity | 0%–95%, non-condensing |
| Ambient-light tolerance | Up to 100,000 lux |
| Configuration software | Honeywell EZConfig |
| POS driver support | OPOS and JPOS |
| Warranty | Three-year factory warranty |
The performance figures can be affected by barcode dimensions, print quality, contrast, reflections and environmental conditions.
A desktop presentation scanner remains positioned on a checkout counter or workstation and automatically reads a barcode presented inside its scanning area.
The operator normally does not need to pick up the scanner or press a trigger for each product. Products, mobile phones, coupons and membership codes can be presented in front of the scan window.
This design is useful for:
The HF680 can also be picked up when a barcode is attached to a large or bulky product that cannot be conveniently moved across the counter.
Hands-free scanning means the scanner automatically detects and attempts to decode compatible barcodes presented within its reading area.
This reduces repeated hand movement during checkout and allows the employee to use both hands to move, pack or organise products.
Hands-free operation is especially useful when:
The HF680’s illumination automatically switches off when no object is presented, reducing unnecessary light at the checkout counter.
A 2D area-imaging scanner captures a complete image of the barcode instead of reading only one horizontal laser line.
This allows the Honeywell HF680 to read traditional linear product barcodes as well as compatible square and stacked symbols.
Common 1D barcode applications include:
Common 2D barcode applications include:
Honeywell officially lists standard 1D, PDF and 2D decoding. The exact enabled formats depend on the scanner kit and configuration.
Yes. The Honeywell Orbit HF680 can scan QR codes through its 2D area-imaging engine.
Honeywell lists a typical scanning range of approximately 0–210mm for a 20 mil QR code. Actual performance depends on the code’s dimensions, contrast, print or screen quality and environmental conditions.
QR-code scanning can be used for:
The required QR-code format should be tested with the actual POS or business application before multiple units are deployed.
Yes. The HF680 reads normal 1D product barcodes as well as supported PDF and 2D symbols.
It can process barcodes used for:
Honeywell lists a typical scanning range of up to approximately 210mm for a 13 mil UPC-A barcode.
Yes. Honeywell designed the HF680 to read compatible digital barcodes displayed on smartphones and other electronic screens.
This makes it useful for:
Honeywell specifically highlights its ability to process traditionally difficult digital barcodes at retail checkout counters.
When a mobile barcode is difficult to read:
The Honeywell HF680 is designed to improve scanning of some damaged, poorly printed and difficult-to-read barcodes.
Its megapixel sensor and 1GHz processor can help minimise checkout delays when a product label is faded, scratched or displayed digitally.
The HF680 may improve scanning of:
No scanner can recover barcode information when important sections of the symbol are completely missing. Severely damaged labels should be replaced or reprinted.
The Honeywell HF680 has a listed motion tolerance of up to 2.5 metres per second for a 13 mil UPC barcode at the optimal focal position.
Motion tolerance describes how quickly a barcode can move through the scanning field while remaining readable. It does not mean that the scanner processes 2.5 products per second.
Actual checkout performance can depend on:
Move products smoothly through the reading area rather than presenting them with unpredictable motion.
The HF680’s working distance depends on the barcode type and density.
| Barcode Type | Typical Scanning Range |
|---|---|
| 5 mil Code 39 | 0–100mm |
| 6.7 mil PDF | 0–110mm |
| 10 mil Data Matrix | 0–90mm |
| 13 mil UPC-A | 0–210mm |
| 20 mil Code 39 | 0–300mm |
| 20 mil QR Code | 0–210mm |
The scanner can read supported codes placed close to its scanning window. Larger, lower-density barcodes can generally be scanned from farther away than very small or dense symbols.
Actual scanning range may be affected by:
Yes. Honeywell lists a minimum resolution of 3 mil for 1D barcodes and 6.7 mil for 2D symbols under suitable conditions.
A mil is one-thousandth of an inch and describes the width of the narrowest barcode element.
Small barcodes require:
A physical scan test is recommended when the business uses unusually small product, jewellery, electronics or pharmaceutical barcodes.
Print contrast measures the difference between the dark barcode elements and the lighter background.
Honeywell lists a minimum reflectance difference of 20% for the HF680 under suitable testing conditions.
A barcode may become difficult to read when:
Clear black-on-white printing generally produces the most dependable results.
The HF680 uses low-profile, recessed LED lights inside its scanning window.
These lights illuminate the barcode when an object is presented. When the scanner is not being used, its illumination automatically switches off.
This design provides several benefits:
The scanning lights should never be covered with stickers, tape or product labels.
Yes. Although the HF680 is primarily a desktop presentation scanner, its shape allows an operator to pick it up and move it toward a product barcode.
This is useful when a product is too large, heavy or awkward to move across the checkout counter.
Possible examples include:
The scanner remains corded, so its movement is limited by the connected USB or RS-232 cable.
Yes. Honeywell states that the HF680’s scanning head can be tilted upward or downward to accommodate products of different sizes and shapes.
This allows the scanning field to be directed toward the normal product path at the checkout counter.
An adjustable scan head can help when:
Do not force the scanner beyond its supported adjustment range.
The Honeywell HF680 supports USB and RS-232 host interfaces.
The exact connection cable depends on the selected product kit.
USB is commonly used with:
In a compatible USB HID configuration, scanned barcode data can appear in an active software field similarly to typed keyboard input.
RS-232 may be used with:
An RS-232 installation may require:
Confirm the required interface and included cable before ordering.
No. The Honeywell HF680 is a corded desktop scanner.
It does not contain a rechargeable battery or use Bluetooth for normal operation. It connects to a compatible host system through USB or RS-232.
A corded presentation scanner is suitable when:
Choose a cordless handheld scanner when staff need to move around shelves, cartons or warehouse aisles.
The HF680 is designed for point-of-sale and general barcode-data-entry applications.
Honeywell provides EZConfig configuration support and OPOS/JPOS drivers to simplify installation with compatible POS systems.
Compatibility still depends on:
Test the HF680 with the actual billing or inventory application before purchasing several units.
Honeywell EZConfig is a configuration utility for supported barcode scanners.
It can help businesses manage scanner behaviour and prepare settings for compatible POS installations. Honeywell specifically identifies EZConfig as a tool for rapidly configuring the HF680.
Configuration options may include:
Only change scanner settings after confirming the data format required by the POS or inventory software.
OPOS and JPOS are standard interface technologies used by many point-of-sale applications.
Honeywell provides OPOS and JPOS driver support to help integrate the HF680 with compatible POS systems.
Driver support can help with:
Availability of a driver does not guarantee compatibility with every POS application. The exact hardware and software combination should be tested.
The Honeywell HF680 is designed for normal commercial and retail use.
Honeywell states that it is designed to withstand drops from approximately one metre. The scanner also carries an IP42 environmental-protection rating on its official product specifications.
It is suitable for:
It is not intended to replace a rugged industrial scanner in environments involving heavy dust, moisture, repeated severe impacts or outdoor exposure.
The Honeywell HF680 has an IP42 environmental-protection rating.
The first digit, 4, indicates protection against solid objects larger than approximately 1mm.
The second digit, 2, indicates limited protection against vertically dripping water when the device is tilted within specified limits.
IP42 does not make the HF680 waterproof. Do not:
Keep the scanner in a dry indoor environment.
Honeywell lists an operating-temperature range of -10°C to 40°C.
The scanner can be stored from -40°C to 60°C and used in relative humidity from 0% to 95%, provided condensation does not form. It can tolerate ambient light levels up to 100,000 lux.
Avoid:
Choose the Honeywell HF680 when your business needs affordable hands-free scanning of printed and digital 1D or 2D barcodes.
| Requirement | Recommendation |
|---|---|
| Standard product barcodes | HF680 is suitable |
| QR-code scanning | Supported |
| Data Matrix scanning | Supported through 2D capability |
| PDF barcode scanning | Supported |
| Mobile-screen codes | Supported |
| Damaged-barcode reading | Designed for improved performance |
| Hands-free counter scanning | Supported |
| Adjustable scan head | Supported |
| Large-product scanning | Scanner can be lifted |
| USB connection | Supported |
| RS-232 connection | Supported |
| Wireless scanning | Not supported |
| Battery operation | Not supported |
| Long-range warehouse scanning | Choose another model |
| Waterproof operation | Not suitable |
| Rugged industrial use | Choose an industrial scanner |
The HF680 is best suited to indoor retail and service counters where compact design, hands-free operation and QR-code support are more important than wireless mobility.
A 1D scanner reads traditional linear barcodes. A 2D scanner reads linear symbols as well as square and stacked codes.
| Feature | Basic 1D Scanner | Honeywell HF680 |
|---|---|---|
| UPC and EAN barcodes | Supported | Supported |
| Code 39 and Code 128 | Supported | Supported |
| QR codes | Not supported | Supported |
| Data Matrix | Not supported | Supported |
| PDF417 | Usually not supported | Supported |
| Mobile-screen codes | Usually limited | Supported |
| Barcode orientation | More alignment may be required | Area imaging |
| Digital coupons | Usually unsuitable | Suitable |
| QR payments | Not supported | Suitable for compatible codes |
| Best use | Printed product codes | Mixed printed and digital codes |
Choose the HF680 when the business uses mobile payments, digital loyalty cards, QR codes or modern 2D symbols.
The Honeywell MK7120 is a 1D laser presentation scanner, while the HF680 is a 2D area-imaging presentation scanner.
| Feature | Honeywell MK7120 | Honeywell HF680 |
|---|---|---|
| Scan technology | 1D laser | 2D area imager |
| Standard product barcodes | Supported | Supported |
| QR codes | Not supported | Supported |
| Data Matrix | Not supported | Supported |
| PDF417 | Not supported | Supported |
| Digital-screen scanning | Not recommended | Supported |
| Hands-free operation | Supported | Supported |
| Adjustable head | Supported | Supported |
| Main interfaces | Depends on MK7120 kit | USB and RS-232 |
| Best use | Printed retail barcodes | Printed and digital codes |
Honeywell lists the Orbit 7120 as a 1D hands-free scanner, whereas the HF680 supports standard 1D and 2D decoding.
Choose the MK7120 when only traditional printed product barcodes are required.
Choose the HF680 when QR codes, mobile coupons or digital-screen scanning are part of the workflow.
The HF680 is positioned as an affordable retail presentation scanner. The Genesis XP 7680g is a higher-performance presentation model with stronger durability, additional mounting options and faster motion tolerance.
| Feature | Honeywell HF680 | Genesis XP 7680g |
|---|---|---|
| Scan technology | 1-megapixel area imager | 1-megapixel XP area imager |
| 1D and 2D scanning | Supported | Supported |
| Motion tolerance | Up to 2.5m/s | Up to 4m/s |
| 13 mil UPC range | Up to approximately 210mm | Up to approximately 250mm |
| Minimum 1D resolution | 3 mil | 3 mil |
| Minimum 2D resolution | 6.7 mil | 5 mil |
| Environmental protection | IP42 | IP52 |
| Mounting | Desktop adjustable head | Stand, wall, POS and vertical options |
| Interfaces | USB and RS-232 | USB, RS-232, keyboard wedge and RS-485 |
| Main position | Affordable retail scanning | Higher-performance flexible scanning |
| Best use | Standard retail counters | Demanding retail, healthcare and kiosk use |
Honeywell’s current scanning guide positions the HF680 as an affordable scanner and the Genesis XP 7680g as a more comprehensive, high-performance option.
Choose the HF680 when affordability and everyday retail scanning are the main priorities.
Choose the Genesis XP 7680g when faster scanning, stronger sealing or flexible mounting justifies the higher investment.
GS Systemz offers the Honeywell HF680 for businesses in Pakistan that need hands-free 1D, QR and 2D barcode scanning.
This product page helps customers evaluate:
Before placing an order, confirm:
Honeywell publishes different HF680 documents and kit options, so checking the exact part number helps ensure that the supplied unit matches the customer’s interface and software requirements.
Place the HF680 on a stable counter with its scanning window directed toward the normal product or phone-presentation area.
Scanner-care tips:
Regular cleaning and correct positioning can reduce failed scans and checkout interruptions.
Buy the Honeywell HF680 if your business needs a compact desktop scanner for both printed and digital 1D or 2D barcodes.
It is suitable for:
It is particularly suitable when hands-free operation, QR support and a modern customer-facing design are required at a fixed counter.
Get the Honeywell HF680 2D QR Desktop Barcode Scanner from GS Systemz for retail checkout, pharmacy billing, membership verification, digital coupons and point-of-sale scanning.
Use it to scan standard product barcodes, QR codes, PDF symbols, Data Matrix codes and compatible barcodes displayed on mobile-device screens.
Confirm the exact model revision, colour, interface cable, power supply, enabled symbologies, warranty and complete package contents before adding the Honeywell HF680 to your POS setup.
The Honeywell Orbit HF680 is a corded hands-free area-imaging scanner designed to read standard 1D, PDF and 2D barcodes.
Yes. It supports QR-code scanning and has a typical range of approximately 0–210mm for a 20 mil QR code.
Yes. It reads traditional 1D product barcodes as well as supported PDF and 2D formats.
Yes. Honeywell designed it to process compatible digital barcodes displayed on mobile devices.
No. It is a corded scanner with USB and RS-232 interface support.
It supports motion tolerance of up to 2.5 metres per second for a 13 mil UPC barcode at optimal focus.
It is designed to improve the scanning of some damaged, poorly printed and difficult digital barcodes. Results depend on the condition of the code.
The Honeywell HF680 has an IP42 environmental-protection rating. It should not be treated as waterproof.
Honeywell lists a three-year factory warranty. Local warranty coverage and claim procedures should be confirmed with GS Systemz.
You can buy the Honeywell HF680 2D QR Desktop Barcode Scanner from GS Systemz in Pakistan.
Reviews
There are no reviews yet.
