₨6,500.00

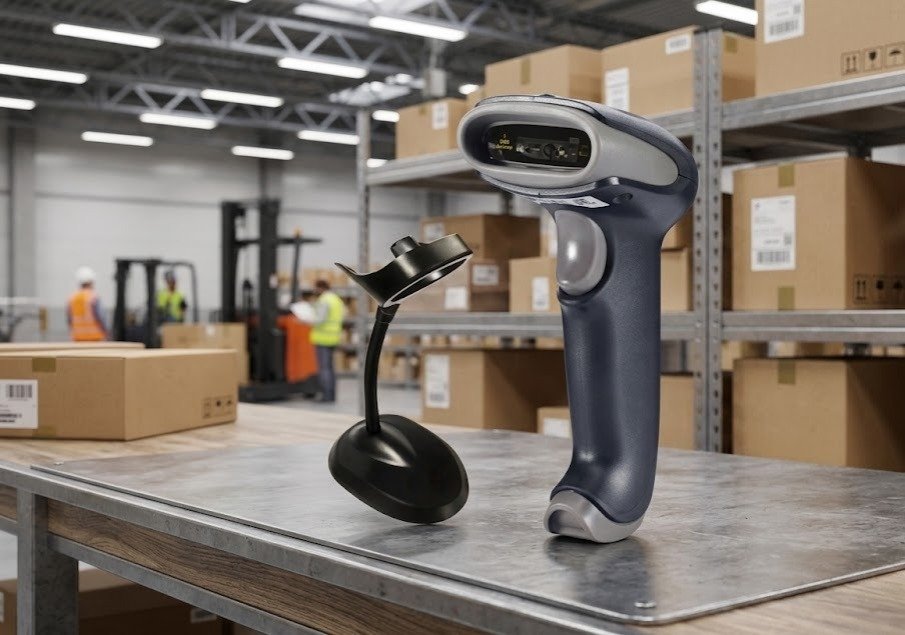

The POSPRO PBS-6610 1D CCD Wired Handheld Barcode Scanner is a corded linear-imaging scanner designed for retail counters, pharmacies, grocery stores, libraries, courier offices, inventory desks and packing stations.
POSPRO markets the PBS-6610 as part of its Blink Series. It uses CCD linear-imaging technology to read supported 1D barcodes from printed labels, product packaging, reflective materials, smartphones and computer displays. It is also promoted for reading dirty, folded and moderately damaged linear barcodes.
The scanner is intended for conventional barcodes such as UPC, EAN, Code 39 and Code 128. It is not a QR or general 2D barcode scanner. Businesses requiring QR Code, Data Matrix or PDF417 should choose a verified POSPRO 2D CMOS model instead.
Its wired connection provides continuous power and stable data transmission without battery charging, wireless pairing or receiver management.
| Feature | Published information |
|---|---|
| Brand | POSPRO |
| Model | PBS-6610 |
| Series | Blink Series |
| Product type | Wired handheld barcode scanner |
| Scan technology | CCD linear imaging |
| Barcode capability | 1D |
| Sensor resolution | Approximately 2500 pixels on matching platform |
| Light source | 632nm red LED on matching platform |
| Published scan rate | Approximately 350 ±50 scans per second |
| Minimum resolution | Approximately 4 mil |
| Print contrast | Greater than 25% under listed conditions |
| Screen scanning | Supported for compatible 1D barcodes |
| Reflective-label scanning | Advertised |
| Damaged-barcode reading | Advertised |
| Wired interfaces | USB and serial options depend on kit |
| Battery | Not required |
| Wireless communication | No |
| Dimensions | Approximately 70 × 95 × 168mm on matching platform |
| Weight | Approximately 172.3g on matching platform |
| Published drop resistance | Approximately 1.8m on matching platform |
| QR-code support | No |
| Local warranty | Distributor warranty; confirm duration |
| Box contents | Confirm with GS Systemz |
The detailed optical and physical figures correspond to the official Winson WNC-6080g platform, whose product wording and performance claims closely match those used for the POSPRO PBS-6610. POSPRO has not publicly confirmed the OEM relationship, so GS Systemz should verify the scanner label or supplied manual before treating every figure as guaranteed.
The PBS-6610 is suitable for businesses that need fast, economical scanning of conventional linear barcodes.
It can replace manual product-code entry in workflows involving:
Its CCD engine can read supported 1D codes from printed paper and compatible electronic screens. This provides more flexibility than some traditional laser scanners when a linear barcode is displayed on a smartphone or computer monitor.
The wired design is particularly useful when:
Key features include:
POSPRO directly publishes the 350 ±50 scan-rate claim, material-scanning capability, ABS construction, rubber cushioning, drop protection and C&K trigger information. The matching Winson platform adds the detailed optical, interface and programming specifications.
| Application | Suitability |
|---|---|
| Retail product billing | Excellent |
| Grocery-store checkout | Excellent |
| Pharmacy product scanning | Good for compatible 1D labels |
| Book and ISBN scanning | Excellent |
| Library circulation | Excellent |
| Inventory data entry | Excellent |
| Membership cards | Excellent |
| Courier labels with 1D codes | Excellent |
| Product receiving | Excellent |
| Packing verification | Excellent |
| Clothing and cosmetics labels | Excellent |
| Hardware-store products | Excellent |
| Smartphone-displayed 1D codes | Supported |
| Computer-screen 1D codes | Supported |
| Reflective labels | Supported within practical limits |
| Moderately damaged labels | Supported within practical limits |
| QR-code scanning | Not supported |
| Data Matrix scanning | Not supported |
| PDF417 scanning | Not supported |
| Wireless aisle scanning | Not supported |
| Long-range pallet scanning | Not designed for this |
| Wet outdoor operation | Not recommended |
| Heavy industrial use | Choose a rugged industrial scanner |
The matching platform is promoted for supermarkets, warehouses, hospitals, libraries, catering, logistics, express delivery and registration environments.
The following table combines confirmed POSPRO information with the closely matching official WNC-6080g specification set.
| Specification | Published detail |
|---|---|
| Product name | POSPRO PBS-6610 |
| Product series | Blink Series |
| Product category | Wired handheld barcode scanner |
| Barcode class | 1D |
| Scan technology | CCD linear sensor |
| Sensor resolution | Approximately 2500 pixels |
| Light source | 632nm red LED |
| Processor | 32-bit platform is advertised by the matching OEM |
| Scan rate | Approximately 350 ±50 scans per second |
| Minimum resolution | Approximately 0.101mm or 4 mil |
| Minimum print contrast | Greater than 25% for listed UPC/EAN test |
| Pitch angle | Approximately ±35° |
| Skew angle | Approximately ±75° |
| Tilt angle | Approximately ±45° |
| Interfaces | USB HID, USB VCP, RS-485, RS-232 and PS/2 on matching platform |
| Input voltage | 5V DC ±10% |
| Maximum current | Approximately 138mA |
| Dimensions | Approximately 70 × 95 × 168mm |
| Weight | Approximately 172.3g |
| Operating temperature | -20°C to 65°C |
| Storage temperature | -30°C to 70°C |
| Humidity | 5%–90% |
| Direct-sunlight tolerance | Up to approximately 80,000 lux |
| Drop resistance | Approximately 1.8m onto concrete |
| Trigger durability | Approximately 1.5 million operations |
| Screen scanning | Compatible 1D codes only |
| Battery | Not required |
| Wireless communication | No |
| IP protection | No verified rating found |
| Local warranty | Confirm duration with GS Systemz |
| Included cable | Confirm exact interface kit |
The detailed specification table comes from the official WNC-6080g documentation. The PBS-6610 product description duplicates its distinctive 350 ±50 scans-per-second, 1.8-metre drop, reflective-media and C&K trigger claims, suggesting that the POSPRO model uses the same or a closely related hardware platform. This remains an inference until the physical product documentation is checked.
The published PBS-6610 description closely matches the official Winson WNC-6080g.
Both descriptions identify:
This strongly suggests that the PBS-6610 is based on, rebranded from or closely related to the WNC-6080g platform. POSPRO does not publicly confirm the OEM identity, so the physical label, programming guide and package remain the final authorities.
CCD stands for charge-coupled device.
A CCD linear scanner captures a narrow digital image across the barcode. It analyses the sequence of dark bars and lighter spaces to identify the encoded number or text.
Unlike a traditional laser engine, a CCD scanner has no moving scanning mirror. This can support:
The matching WNC-6080g platform uses a 2500-pixel CCD linear sensor and a 632nm red LED.
CCD does not mean 2D. The PBS-6610 remains a 1D scanner.
No. POSPRO identifies it as a CCD linear-image scanner.
A laser scanner uses a laser beam and usually relies on a moving mirror or scanning mechanism. A CCD scanner captures a digital linear image of the barcode.
The accurate product description is:
POSPRO PBS-6610 1D CCD Wired Handheld Barcode Scanner
Avoid describing it as a 2D CMOS, QR or laser scanner.
The matching official platform lists support for:
Some formats may need to be enabled through the scanner’s programming guide.
GS Systemz should test any specialised or less common symbology before supplying several units.
Yes. Normal product-barcode scanning is its primary purpose.
It can read compatible linear codes printed on:
Common UPC, EAN, Code 39 and Code 128 families are included in the matching platform’s supported format list.
No. The PBS-6610 is a 1D CCD linear scanner.
It cannot decode general two-dimensional formats such as:
Choose a verified 2D CMOS scanner when the business needs mobile QR payments, digital tickets, Data Matrix medicine labels or modern two-dimensional inventory codes.
Yes, but only when the screen displays a compatible 1D barcode.
POSPRO states that the PBS-6610 reads linear codes from mobile phones and computer displays.
It may be used with screen-displayed:
It cannot read a QR code simply because the QR code appears on a phone.
For better screen scanning:
Yes. The PBS-6610 is advertised for reading compatible 1D codes from computer displays.
This may support:
The scanner transfers the decoded value to the connected application. The software remains responsible for searching its database or processing the transaction.
POSPRO promotes the scanner for reading dirty, folded and damaged barcodes.
It may handle labels that are:
Scanning can still fail when:
Replace badly damaged pharmacy, inventory and courier labels where accurate identification is critical.
Yes. POSPRO specifically states that the PBS-6610 can scan compatible 1D codes printed on reflective silver materials.
Reflective-label performance still depends on:
Tilting either the scanner or label slightly can reduce reflection and improve decoding.
The product description states that it can read compatible barcodes on surfaces affected by water or ice.
This is a barcode-decoding claim. It does not mean the scanner itself is waterproof.
A code may remain readable when:
Keep the scanner housing, trigger and cable connection dry.
A mil is one-thousandth of an inch.
A 4 mil specification means the matching scanner platform can read a supported linear barcode whose narrowest bar is approximately 0.101mm under suitable test conditions.
Successful scanning also depends on:
Businesses scanning jewellery tags, electronic components or very small pharmacy labels should test their actual codes before ordering multiple scanners.
The published scan rate is approximately 350 ±50 scans per second.
This describes the scan engine’s sampling performance. It does not mean an employee can complete hundreds of separate sales transactions every second.
Practical productivity also depends on:
The matching platform publishes approximately:
Pitch describes tilting the top of the barcode toward or away from the scanner.
Skew describes angling one side of the barcode closer to the scanner.
Tilt describes rotating the barcode relative to the scanner’s reading line.
These tolerances help users scan labels without holding every product in one exact position.
The matching WNC-6080g platform supports:
The actual interface supplied with the POSPRO PBS-6610 depends on the product kit.
USB HID sends barcode data like keyboard typing.
It is suitable for:
USB VCP creates a virtual serial port on a compatible computer.
This may be required when software expects COM-port communication rather than keyboard-style data.
RS-232 may be used with older POS terminals, legacy billing systems and specialist equipment.
GS Systemz should state the included cable clearly and avoid advertising every possible interface as standard box content.
The matching platform is advertised as plug and play in compatible USB keyboard mode, without manual driver installation.
A normal USB HID installation involves:
USB Virtual COM and RS-232 configurations may require drivers or port settings.
No. It is a wired scanner.
The PBS-6610 receives power through its host connection or wired power arrangement.
Benefits include:
The scanner must remain within the reach of its cable.
No. The PBS-6610 is a corded handheld scanner.
Choose a wireless model when employees need to scan:
A wired model is generally preferable when the scanner remains beside one POS or packing workstation.
The PBS-6610 can work with compatible POS, inventory, pharmacy, courier and library applications.
In USB HID mode, scanned information normally enters the active software field like typed text.
Compatibility depends on:
The matching platform lists Windows, Android, macOS, iOS and Linux compatibility, but practical support depends on the connection, adapter and business application.
It should work with many locally developed systems that accept keyboard-style barcode input.
Potential uses include:
Specialised software requiring serial communication or custom formatting should be tested before purchasing several units.
The matching platform supports programmable functions such as:
An Enter or Tab suffix can normally be configured using the appropriate programming barcode.
Use only the guide supplied with the PBS-6610. Programming codes from another scanner can produce incorrect settings.
Yes. The matching platform supports several keyboard layouts, including US English and multiple European or international languages.
The scanner and computer keyboard layouts should match. An incorrect setting can change:
POSPRO describes ABS construction, rubber impact cushioning and a scanner that continues working after an approximately 1.8-metre drop onto concrete. The matching WNC-6080g specification table also publishes a 1.8-metre drop rating.
The trigger is advertised for approximately 1.5 million operations.
These figures do not make the scanner unbreakable. Repeated impacts can still damage:
No verified IP or waterproof rating was found.
The ability to read a wet barcode does not make the scanner waterproof.
Do not:
Use a soft, slightly damp cloth for normal exterior cleaning.
The matching platform publishes:
These figures should be verified from the PBS-6610 manual before being presented as guaranteed specifications for every POSPRO batch.
Avoid condensation, direct water exposure, damaged cables and extreme temperature changes.
Package contents can vary by interface kit and distributor.
A typical package may include:
A stand, RS-232 cable, power adapter or replacement cable may not be included.
GS Systemz should inspect the actual box before promising specific accessories.
| Requirement | Recommendation |
|---|---|
| Standard retail 1D barcodes | Supported |
| UPC and EAN products | Supported |
| Code 39 and Code 128 | Supported |
| Small 1D labels | Approximately 4 mil under listed conditions |
| Smartphone-displayed 1D codes | Supported |
| Computer-screen 1D codes | Supported |
| Reflective labels | Advertised |
| Moderately damaged barcodes | Advertised |
| Wired continuous operation | Excellent |
| Battery-free operation | Supported |
| QR-code scanning | Not supported |
| Data Matrix scanning | Not supported |
| PDF417 scanning | Not supported |
| Wireless inventory work | Not supported |
| Waterproof operation | Not recommended |
| Long-range pallet scanning | Not suitable |
| Heavy industrial use | Choose a rugged model |
Choose the PBS-6610 when fast wired 1D scanning and screen-code flexibility are the main priorities.
Choose a 2D scanner when QR Code, Data Matrix or PDF417 is required.
| Feature | PBS-6610 | PBS-4410 |
|---|---|---|
| Product series | Blink Series | Econo Series |
| Barcode class | 1D | 1D |
| Scan technology | CCD confirmed | Publicly unspecified |
| Published scan rate | 350 ±50 scans/sec | Not reliably published |
| Minimum resolution | Approximately 4 mil | Not reliably published |
| Screen scanning | Confirmed for 1D codes | Not confirmed |
| Reflective labels | Advertised | Not confirmed |
| Drop rating | Approximately 1.8m published | Not reliably published |
| Interface options | Several on matching platform | Verify physical kit |
| Best use | Buyers needing documented performance | Basic economical 1D scanning |
Choose the PBS-6610 when CCD technology, scan rate and screen-reading support are important.
Choose the PBS-4410 when the lowest-cost standard 1D option is sufficient.
| Feature | PBS-6610 | PBS-QR1000 |
|---|---|---|
| Barcode class | 1D | 1D and 2D |
| QR Code | No | Yes |
| Data Matrix | No | Advertised |
| PDF417 | No | Advertised |
| Scan technology | CCD linear image | 2D image scanner |
| Screen scanning | Compatible 1D codes | Compatible 1D and 2D codes |
| Stand | Verify package | Commonly included |
| Wired operation | Yes | Yes |
| Best use | Traditional product barcodes | Product labels and modern digital codes |
Choose the PBS-6610 for fast, economical linear barcode scanning.
Choose the PBS-QR1000 when QR codes, digital tickets or Data Matrix labels are part of the workflow.
| Feature | CCD linear scanner | CMOS 2D scanner |
|---|---|---|
| Typical barcode type | 1D | 1D and 2D |
| UPC and EAN | Supported | Supported |
| Code 39 and Code 128 | Supported | Supported |
| QR Code | No | Yes |
| Data Matrix | No | Yes |
| PDF417 | No | Yes |
| Screen scanning | Possible for compatible linear codes | Commonly supports 1D and 2D screens |
| Sensor shape | Linear array | Two-dimensional image sensor |
| Best use | Traditional retail labels | Modern printed and digital codes |
The PBS-6610 is appropriate when all required codes are linear. A CMOS 2D scanner offers greater long-term flexibility.
GS Systemz can position the POSPRO PBS-6610 for businesses in Pakistan that need reliable wired scanning of conventional 1D barcodes.
This page helps buyers evaluate:
Before ordering, confirm:
The scanner may be suitable for:
It is most suitable when conventional 1D scanning, wired reliability and documented CCD performance are more important than wireless movement or 2D capability.
Check availability of the POSPRO PBS-6610 1D CCD Wired Handheld Barcode Scanner with GS Systemz in Pakistan.
Use it for standard retail labels, inventory barcodes, books, membership cards, courier documents and compatible 1D codes displayed on smartphones or computer monitors.
Confirm the exact interface, cable, supported symbologies, scanner revision, local warranty and complete package contents before ordering.
The PBS-6610 is a Blink Series wired handheld scanner that uses CCD linear-imaging technology to read supported 1D barcodes.
No. It is a 1D scanner and does not read QR Code, Data Matrix or PDF417.
Its published scan rate is approximately 350 ±50 scans per second.
Yes, but only when the phone displays a compatible 1D barcode. It cannot read QR codes from a phone.
POSPRO advertises support for dirty, moderately damaged, folded and reflective 1D barcode labels. Results depend on how much valid barcode information remains visible.
The closely matching official platform publishes approximately 4 mil or 0.101mm under suitable test conditions.
The matching platform supports USB HID, USB VCP, RS-232, RS-485 and PS/2. The interface included with the POSPRO package must be confirmed.
No. It is a wired scanner and receives power through its connected host or interface.
No verified IP or waterproof rating was found. Keep the scanner dry even though it may read a barcode affected by light moisture.
You can check availability of the POSPRO PBS-6610 1D CCD Wired Handheld Barcode Scanner with GS Systemz in Pakistan.
Reviews
There are no reviews yet.
